A biometric system is a technological system that uses information about a person (or other
biological organism) to identify that person. Biometric systems rely on specific data about unique
biological traits in order to work effectively.

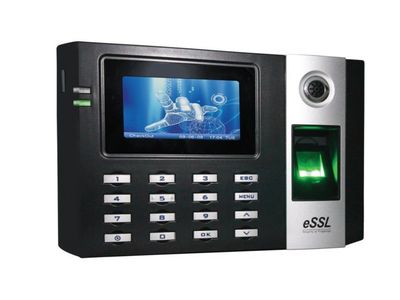

Model I9C-E9C Finger
Users : 2200 Fingerprints
Transactions Storage : 1,00,000 Logs
Fingerprint Sensor : 500 DPI Optical Sensor
Card Storage:2200
Display : 2.8” Color TFT
CPU: 32bit microprocessor — 400 mhz
FAR: <= 0.0001%
FRR:<=1%
IDENTIFICATION SPEED : <= 1 SEC
Communication : TCP/IP, USB
Power Supply : 5 v DC, 2 amp
Operating Temperature : OoC — 45oC
Operating humidity : 20% - 80%
Dimension : 213 x 149 x 46mm
internal battery backup : Support External

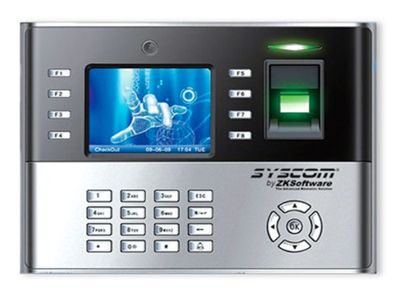

Model Iclock 990
Finger Print Capacity : 10000
Transaction Capacity : 2,00,000
Display : 3.5” color TFT Screen
Communication : TCP/IP ,USB-host, (Optional wifi,gprs)
FAR: <=0.0001%
FRR : <=1%
Identification Speed : <= 1 sec
Power Supply : 12V DC, 3A
Operating Temperature : OoC — 45oC
Operating Humidity : 20% - 80%
Dimension(WxHxD) : 210 x 157x40 mm

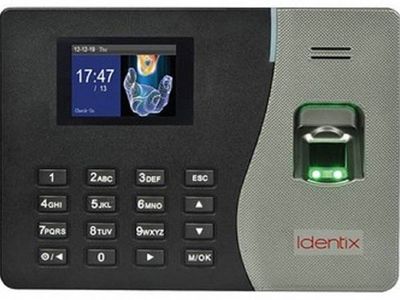

Model K20
User : 500/1000 fingerprints
Transactions Storage : 50, 000 logs
Card Storage : 500 Color Display : 2.8” Color TFT
Communication : USB-host, TCP/IP
FAR: <=0.0001%
FRR:<= 1%
Identification Speed : <= I sec
Power Supply : 5V DC, 0.8 AMP
Operating Temperature : OoC — 45oC
Operating humidity : 20% - 80%
Dimension(WxHxD) : 185 x 140 x 30mm

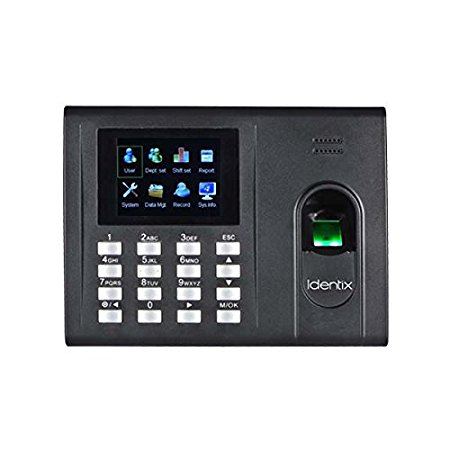

Model K30 Pro
User : 1000 fingerprints
Transactions Storage : 1,00,000 logs
Card Storage : 1000 Color Display : 2.8” Color TFT
Communication : USB-host, TCP/IP
FAR: <=0.0001%
FRR:<= 1%
Identification Speed : <= I sec
Power Supply : 5V DC, 1 AMP
Operating Temperature : OoC — 45oC
Operating humidity : 20% - 80%
Dimension(WxHxD) : 185 x 140 x 30mm

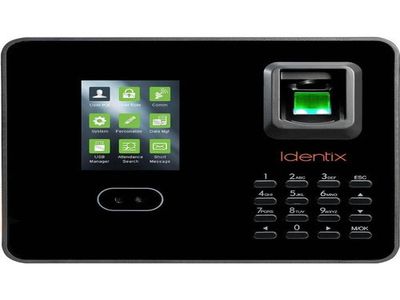

Model MB-160
Face Capacity : 1000 , 3000 FP
Transactions Capacity : 1,00,000
Fingerprint Sensor : 500 DPI Optical Fingerprint
Card Storage:2000
Display : 2.8” TFT Screen
CPU: Multi-Bio CPU 800 Mhz
FAR:<= 0.0001%
FRR:<=1%
Identification Speed : <= 0.5 Sec
Communication : TCP/IP, USB, RS 485
Power Supply : 12 V DC, 1.5AMP
Operating Temperature : OoC — 45oC
Operating Humidity : 20% - 80%
Dimension : 167.5x 148.8x 32.2 mm

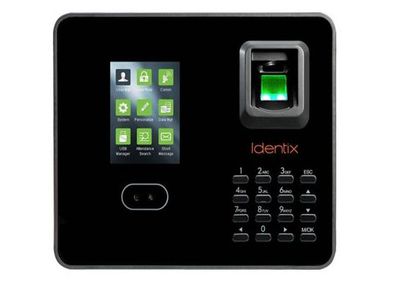

Model MB-200
Face Capacity : 400
Fingerprint Capacity : 500
ID Card Capacity : 1,000 (Optional)
Transaction Capacity : 80,000 logs
Display : 2.8-inch TFT Screen
Communication :TCP/IP, USB HOST
Identification Speed : <= 0.5 Sec

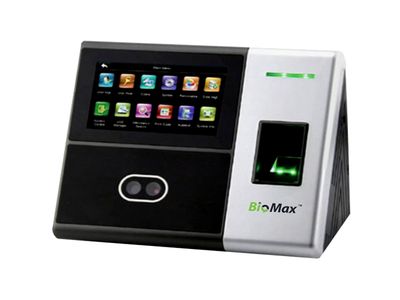

Model sFACE-900
Face Capacity : 1,200 (1 :N), 3,000 (I: I)
Fingerprint Capacity : 2000 (Optinal 4000)
ID Card Capacity : 10,000 (Optional)
Logs Capacity : 100,000
Display : 4.3-inch Touch Screen
Communication :TCP/IP, RS232/485,USB HOST
Interfaces for : 3rd party Electric lock, Door Sensor, wiegand
Signal : Ouput
Power Supply: 12V 3A

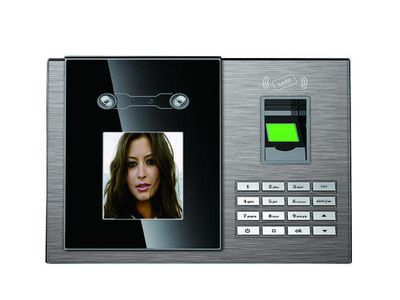

Model UFACE-302
Face Capacity : 3000 (1:N), 3000( 1:1) a 2000 FP
Transactions Capacity : 1,00,000
Fingerprint Sensor : 500 DPI Optical Fingerprint
Card Storage:10,000
Display : 4.3” TFT Touch Screen
CPU: Multi-Bio CPU 800 Mhz
FAR:<= 0.0001%
FRR:<=1%
Identification Speed : <= 1 Sec
Communication : TCP/IP, USB, RS 485
Power Supply : 12 V DC, 3AMP
Operating Temperature : OoC — 45oC
Operating Humidity : 20% - 80%
Dimension : 193.6x 146.8x III mm

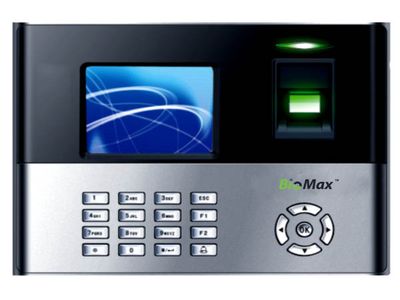

Model X990
Users : 3000 Fingerprints
Transactions Storage : 1,00,000 Logs
Fingerprint Sensor : 500 DPI Optical. Sensor
Card Storage:3000
Display : 2.8” Color TFT
CPU: 32bit microprocessor — 800 mhz
FAR: <= 0.0001%
FRR:<=1%
IDENTIFICATION SPEED : <= 0.5SEC
Communication : TCP/IP, USB, RS 485
Power Supply: 12VDC, 1.5 amp
Operating Temperature : OoC — 45oC
Operating humidity : 20% - 80%

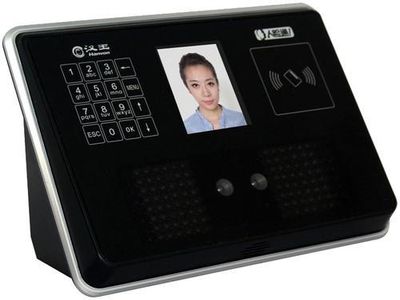

Model M2000
Users : 2000 Faces, 2000 Fingers
Transactions Storage : 2,00,000 Logs
Fingerprint Sensor : Specialized Dual Sensor
Keypad:4 * 4 Touch Keypad
Display : 3.5” Color TFT screen
CPU: 1 Ghz High Speed Digital Processor
FAR: < 0.001%
FRR: < 1%
IDENTIFICATION SPEED : <= 1SEC
Communication : Wifi, TCP/IP, USB ,GPRS, 3G, 4G
Power Supply: 12VDC, 1 amp
Operating Temperature : OoC — 40oC
Operating humidity : 20% - 80%
Dimension : 180x 145x 45 mm

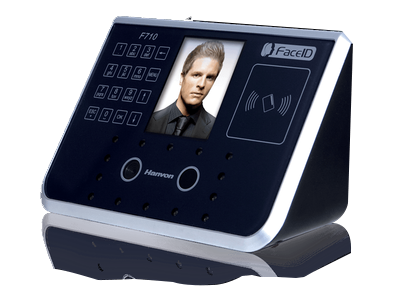

Model F710X
Users : 1000 1:N Matching,10,000 users 1:1 matching
Transactions Storage : 1,00,000 Logs
Fingerprint Sensor : 500 DPI Optical. Sensor
Card Storage:10,000 1:1 Matching
Display : 3.5” Color TFT screen,65000 Bright Color
CPU: 1Ghz digital processor
FAR: <= 0.0001%
FRR:<=1%
IDENTIFICATION SPEED : <= 1SEC
Communication : TCP/IP, USB
Power Supply: 12VDC, 1.5 amp
Operating Temperature : OoC — 40oC
Operating humidity : 20% - 80%
Dimension : 200x 95x 115 mm
Model F910
Users : 1000 1:N Matching,10,000 users 1:1 matching
Transactions Storage : 1,00,000 Logs
Fingerprint Sensor : 500 DPI Optical. Sensor
Card Storage:10,000 1:1 Matching
Display : 3.5” Color TFT screen,65000 Bright Color
CPU: 1Ghz digital processor
FAR: <= 0.0001%
FRR:<=1%
IDENTIFICATION SPEED : <= 1SEC
Communication : TCP/IP, USB
Power Supply: 12VDC, 1.5 amp
Operating Temperature : OoC — 40oC
Operating humidity : 20% - 80%
Dimension : 200x 95x 115 mm
Model FF07
Users : 1000 1:N Matching,10,000 users 1:1 matching
